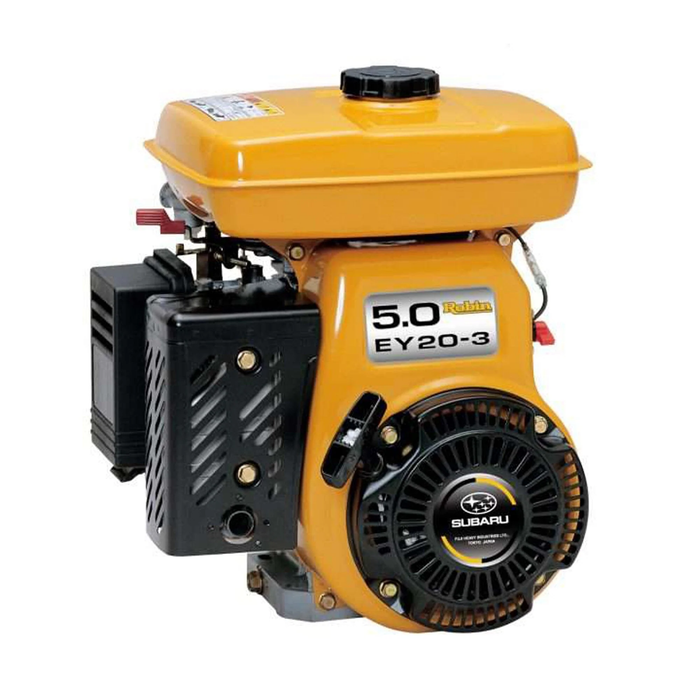

Type: Air-cooled, 4-cycle, single cylinder, horizontal P.T.O. shaft
Bore x Stroke: 67 x 52 mm
Displacement: 183 ml
Continuous Output: 2.24 / 3000; 2.61 / 3600 kW / r/min
Maximum Torque: 7.9 / 2400–3200 N·m / rpm
Direction of Rotation: Counterclockwise as viewed from P.T.O. shaft
Fuel: Automobile gasoline
Fuel Tank Capacity: 3.8 L
Ignition System: Pointless flywheel magneto type
Starting System: Recoil starter
Governor Centrifugal flyweight type
Net Weight: 16 KGS
Dimensions (L x W x H): 318 x 332 x 392 mm
Speed Set – No Load (High): 4000 ± 100 r/min
Speed Set – No Load (Low): 1250 ± 100 r/min
Bore x Stroke: 67 x 52 mm
Displacement: 183 ml
Continuous Output: 2.24 / 3000; 2.61 / 3600 kW / r/min
Maximum Torque: 7.9 / 2400–3200 N·m / rpm
Direction of Rotation: Counterclockwise as viewed from P.T.O. shaft
Fuel: Automobile gasoline
Fuel Tank Capacity: 3.8 L
Ignition System: Pointless flywheel magneto type
Starting System: Recoil starter
Governor Centrifugal flyweight type
Net Weight: 16 KGS
Dimensions (L x W x H): 318 x 332 x 392 mm
Speed Set – No Load (High): 4000 ± 100 r/min
Speed Set – No Load (Low): 1250 ± 100 r/min
